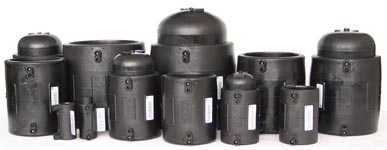

Electrofusion Couplers MB with Removable Stop and Spigot End Caps



  E.F. Coupler

   Spigot End Cap



Product Specifications



D Ref. PN 6 PN 10 PN 12.5 PN 16 L1 h1
20 1002 020   X X X 60 40
25 1002 025   X X X 75 50
32 1002 032   X X X 80 60
40 1002 040   X X X 90 70
50 1002 050   X X X 95 75
63 1002 063   X X X 110 90
75 1002 075   X X X 115 110
90 1002 090 X X X X 140 130
110 1002 110 X X X X 170 150
125 1002 125 X X X X 170 170
140 1002 140 X X X X 182 184
160 1002 160 X X X X 195 215
180 1002 180 X X X X 205 230
200 1002 200 X X X X 210 250
225 1002 225 X X X X 170 281
250 1002 250 X X X X 224 308
280 1002 280 X X X   245 350
315 1002 315 X X X X 250 381
355 1002 355 X X X   300 415
400 1002 400 X X X   340 450

D REF L1 PE SDR
20 1611 020 50 80 7.4
25 1611 025 50 80 9
32 1613 032 60 100 11
40 1613 040 60 100 11
50 1611 050 71 80 7.4
63 1613 063 90 100 11
75 1611 075 96 80 7.4
90 1613 090 110 100 11
110 1613 110 120 100 11
125 1613 125 140 100 11
160 1613 160 179 100 11
180 1613 180 200 100 11
200 1613 200 235 100 11
225 1613 225 209 100 11
250 1613 250 325 100 11
315 1613 315 358 100 11
