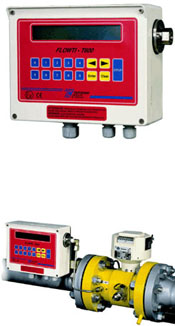

Types
• Flowti - T600TZ : with temperature sensor
• Flowti - T600PTZ : with pressure and temperature sensors
• Flowti - T600MTL : with pressure and temperature sensors
• Flowti - T600MA : with pressure and temperature sensors
• Flowti - T600.X : special configurations
Configurations
• Integrated pressure transmitters in relative or absolute version from 1.6 to 80 bar
• Low frequency volume signal
• High frequency on request for power supplied models
• Battery power supply (TZ-PTZ)
• Power supply and integrated signal repeater (MA)
• Modem and integrated signal repeater for remote reading (MTL)
• Serial repeater with PC interface
• Analog output
General specifications
• IP 55 plastic enclosure
• LCD Display (2x20)
• Membrane keyboard
• Protected data access
• Data storage and transmission via serial port or dial-up modem or GSM
• Storage data for 60 days ( volume, pressure, temperature)
Electrical specifications
• EEx i battery power supply : alkalin battery for 2 working years litium battery for 5 working years
• Power supply : 230 V 50 Hz
• Integrated emergency device
• Built in compliance with EEx ia II B T3 intrinsic safety
• Working temperature : -20 °C +60 °C
• RS-232 serial output [EEx ia]
• Volume impulse outputs [EEx ia]
Correction equations
• Gas compressibility : AGA NX19 mod., AGA 8, GERG 88
• Volume metering : AGA 7
• Orifice metering : CNR-UNI 10023 / ISO 5167
• Others upon request
Software to telereading Flow Computers TELETI WIN-PLUS
These software allows to get the historical data collected in the memory of flow computer/corrector FLOWTI series. In fact by serial port or by modem (standard or GSM) is possible the connection to the instruments and to collect the data. The software allows:
- Automatic calling to system
- Multi-languages (Italian, English, French...)
- Show and print data with graphics and table
- Generate the files of the data
- Exportation data in Excel / Access format
|
