Pilots

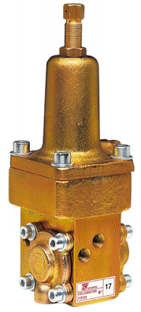

PS/79, RE/79, PSO/79, REO/79 Series

Types
PS/79: pilot for regulator and/or monitor

Use for operating Monitor
PSO/79: pilot for regulator
REO/79: pilot for monitor

Technical Specifications
Allowable pressure PS: 100 bar
Set range Wh: 0.5 to 40 bar

Threaded connections
1/4" NPT female

The pilots are supplied with a filter (5m filtering degree) and built-in pressure stabilizer, with the exception of pilot PSO/79.

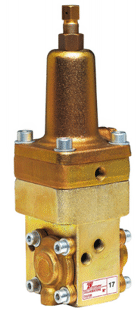

PS/80, RE/80, PSO/80, REO/80 Series

Types
PS/80: pilot for regulator and/or monitor

Use for operating Monitor
PSO/80: pilot for regulator
REO/80: pilot for monitor

Technical Specifications
Allowable pressure PS: 100 bar
Set range Wh: 1.5 to 40 bar

Threaded connections
1/4" NPT female

The pilots are supplied with a filter (5m filtering degree) and built-in pressure stabilizer, with the exception of pilot PSO/80.
